Description

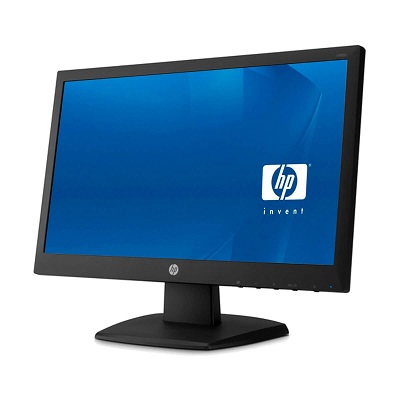

HP Monitor 18.5 Inch V194
|
Specification
|
Description
|
|
Part numbers
|
V5E94AA
V5E94A6
V5E94A8
|
|
Type
|
TN with LED backlight
|
|
Viewable image area (diagonal)
|
46.99 cm (18.5 in) widescreen, diagonally measured
|
|
Panel active area (W x H)
|
40.98 x 23.04 cm (16.13 x 9.07 in)
|
|
Aspect ratio
|
16:9
|
|
Viewing angle
|
Up to 90° horizontal
65° vertical typical
(10:1 minimum contrast ratio)
|
|
Brightness
|
200 cd/m
|
|
Contrast ratio (typical)
|
600:1
|
|
Dynamic contrast ratio (typical)
|
5,000,000:1
|
|
Response rate (typical)
|
5 ms (on/off)
|
|
Pixel pitch
|
0.3 mm
|
|
Pixel pitch inch
|
102.3
|
|
Backlight lamp life (to half brightness)
|
30,000 hours minimum
|
|
Color support
|
Up to 16.7 million colors with the use of FRC technology
|
|
Color gamut (typical)
|
72% (typical)
|
User controls
|
Specification
|
Description
|
|
Buttons or switches
|
Menu
Minus
Plus
OK
Power
|
|
Programmable modes
|
20
|
|
Languages
|
Chinese (Traditional), Chinese (Simplified), Dutch, English, French, German, Italian, Japanese, Portuguese, Spanish,
|
|
On-screen display (OSD) user controls
|
Brightness, Contrast, Color, Image Control, OSD Control, Management, Language, Information, Factory Reset
|
Signal interface/performance
|
Specification
|
Description
|
|
Horizontal frequency
|
30 – 80 kHz
|
|
Vertical frequency
|
50 – 60 Hz
|
|
Native resolution
|
1366 x 768 at 60 Hz
|
|
Preset graphic modes (non-interlaced)
|
640 x 480 at 60 Hz
720 x 400 at 70 Hz
800 x 600 at 60 Hz
1024 x 768 at 60 Hz
1280 x 720 at 60 Hz
1366 x 768 at 60 Hz
|
|
Anti-glare
|
Yes
|
|
Maximum pixel clock speed
|
110 MHz
|
|
User programmable modes
|
20
|
|
Default color temperature
|
6500 K
|
Video/other inputs
|
Specification
|
Description
|
|
Plug and play
|
Yes
|
|
Input connectors
|
(1) VGA
|
|
Video cables included
|
(1) VGA cable (1.5 m (4.9 ft))
|
Power
|
Specification
|
Description
|
|
Power supply
|
Internal
|
|
Input power
|
110 to 240 VAC at 50/60 Hz
|
|
Maximum power
|
17 W
|
|
Typical power
|
15 W
|
|
Power saving
|
0.5 W
|
|
Power cable length
|
1.5 m (4.9 ft)
|
Mechanical
|
Specification
|
Description
|
|
Dimensions (W x D x H)
|
Unpacked with stand: 44.14 x 21.81 x 33.86 cm (17.38 x 8.59 x 13.33 in)
Unpacked without stand (head only): 44.14 x 4.54 x 27.77 cm (17.38 x 1.79 x 10.94 in)
Packaged: 55.4 x 10 x 34.6 cm (22.32 x 4.96 x 15.59 in)
|
|
Weight
|
Head only: 2.4 kg (5.07 lb)
Unpacked: 2.6 kg (5.73 lb)
Packaged: 3.7 kg (8.2 lb)
|
|
Tilt range
|
-5° to + 22° vertical
|
|
Swivel
|
N/A
|
|
Height adjustment
|
N/A
|
|
Pivot
|
N/A
|
|
Base
|
Detachable
|
Environmental
|
Specification
|
Description
|
|
Temperature
|
Operating: 5° to 35° C (41° to 95° F)
Non-operating: –20° to 60° C (-4° to 140° F)
|
|
Humidity
|
Operating: 20% to 80% non-condensing
Non-operating: 5% to 95%, 38.7° C max wet-bulb
|
|
Altitude
|
Operating: 0 to 5,000 m (0 to 16,400 ft)
Non-operating: 0 to 12,192 m (0 to 40,000 ft)
|
|
White LED backlights
|
Yes
|
|
CCFL panel
|
No
|
|
Arsenic-free display glass
|
Yes
|
|
Low halogen
|
No
|
|
Mercury-free display backlighting
|
Yes
|
Miscellaneous
|
Specification
|
Description
|
|
User guide languages
|
Arabic, Bahasa Indonesian, Chinese (Traditional), Chinese (Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Kazakh, Korean, Latin America, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Russian, Slovenian, Spanish, Swedish, and Turkish
|
|
Warranty languages
|
Arabic, Bahasa Indonesian, Chinese (Traditional), Chinese (Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Kazakh, Korean, Latin America, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Russian, Slovenian, Spanish, Swedish, and Turkish
|
|
Color
|
Black
|
|
VESA mounting
|
Yes, one set of standard 4-hole pattern, 100 mm
|
|
Security lock-ready
|
Yes
|
|
Country of origin
|
China
|
